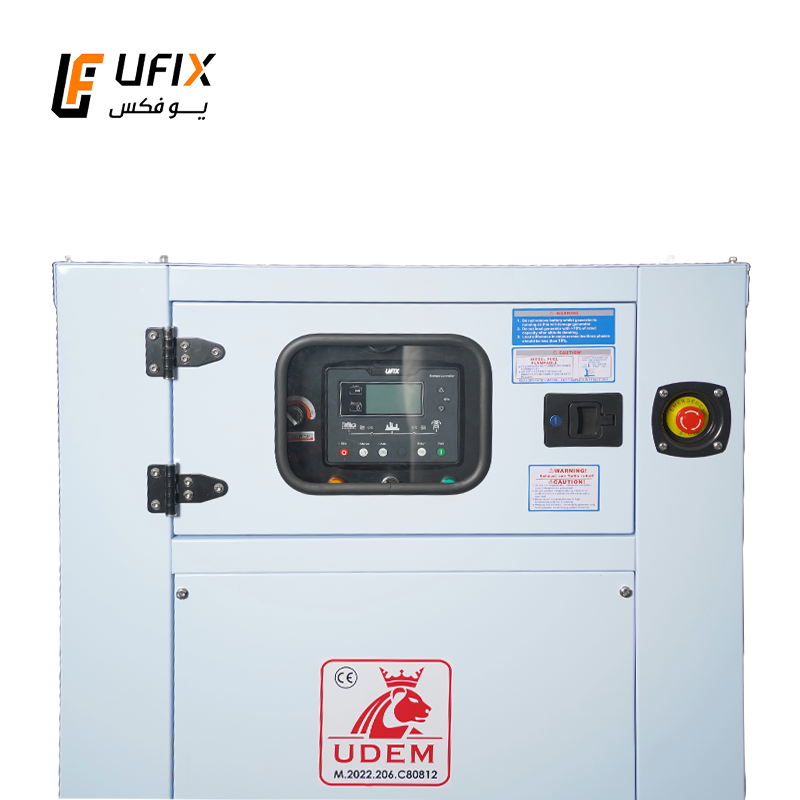

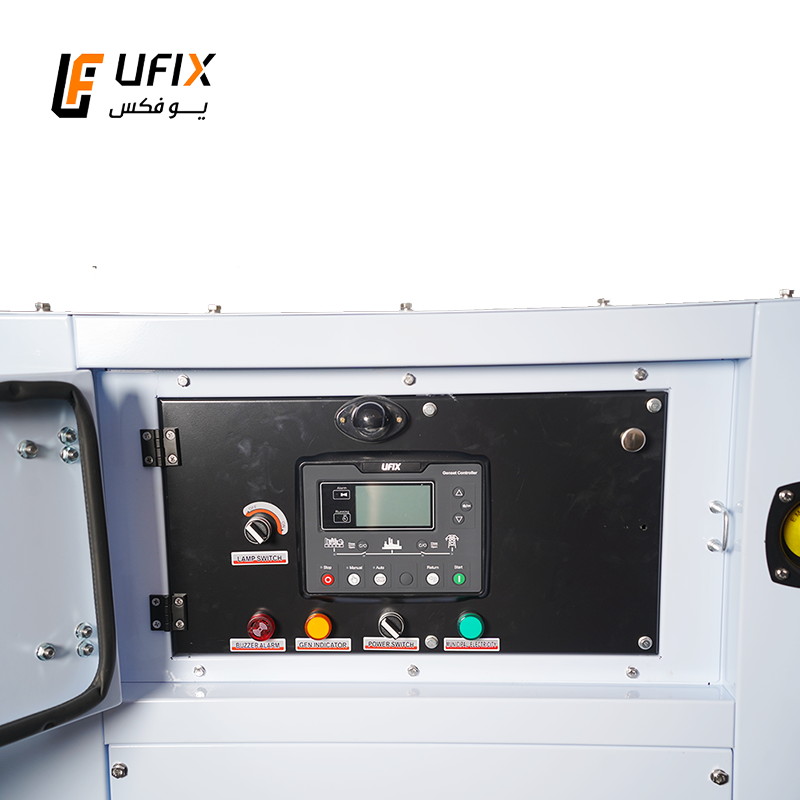

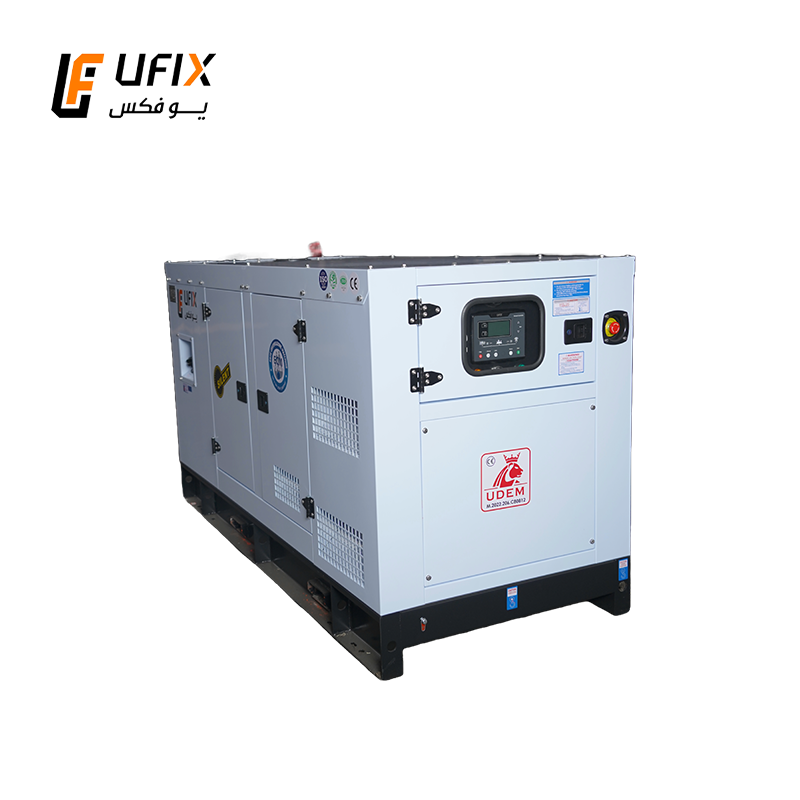

ZH4100D-34KW (Silent Type)

Generator Set Specifications Model: ZH4100D-34KW (Silent Type) Aspiration Natural: Air Intake Starting Method: 12V electric starter with battery charging Governor: Mechanical Alternator Specifications Model: UFIX-24KW Insulation Class: H Power Factor: 8 Excitation Mode: Brushless IP Class: IP23 Voltage Regulation: ±1.5% with 4% engine governing Generator Set Specifications (GFS-24R) Type: Silent Prime Power: 30 kVA / 24 kW Standby Power: 33 kVA / 26.4 kW Frequency/Speed: 60 Hz / 1800 rpm Standard Voltage: 380V (3 Phase, 4-wire) Dimensions and Weights Dimensions (L × W × H): 2250 × 860 × 1210 mm Weight: 860 kg Fuel Specifications Fuel Tank Capacity: 3.61L Consumption: 258.4 g/kW.h
