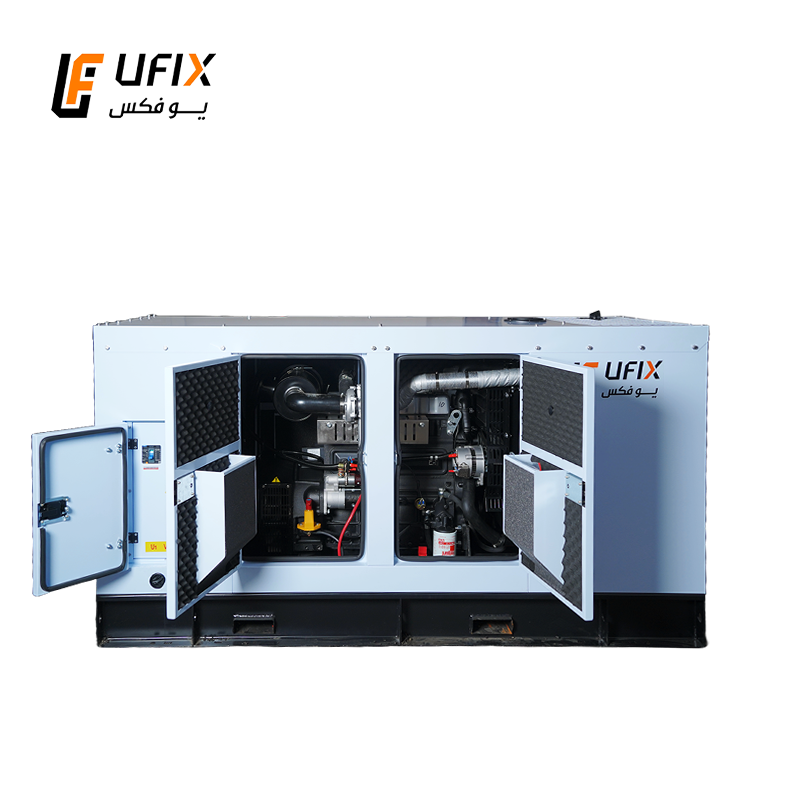

R6105ZD-88KW (Silent Type)

Generator Set Specifications
Model: R6105ZD-88KW (Silent Type)
Starting Method: : 24V electric starter with battery charging alternator
Governor: Mechanical

Alternator Specifications
Model: UFIX-75KW
Insulation Class: H
Rated Power Factor: 8
Excitation Mode: Brushless
IP Class: IP23
Voltage Regulation: ±1.5% with 4% engine governing

Generator Set Specifications (GFS-75R)
Type: Silent
Prime Power: 94 kVA / 75 kW
Standby Power: 103 kVA / 82.5 kW
Frequency/Speed: 60 Hz / 1800 rpm
Standard Voltage: 380V (3 Phase, 4-wire connection)

Dimensions and Weights
Dimensions (L × W × H): 2920 × 1120 × 1320 mm
Weight: 980 kg

Fuel Specifications
Fuel Tank Capacity: 6.49 liters
Fuel Consumption: 224 g/kW.h
Aspiration Type: Turbocharged
